Hella DuraLED Flush Mount Front End Outline Lamp

The now iconic DuraLED^® range revolutionised safety of the New Zealand transport fleets. First conceived and field trialed by HELLA New Zealand in 1998, our radical pursuit to create a range of Fit and Forget, highly visible LED Marker and Signal Lamps, permanently lowered the cost of ownership for our fleets and made our roads safer.

Fit & Forget by Design is a HELLA no compromise philosophy and commitment to design for long-term durability and safety. Products that carry the DuraLED^® name will outlast the life of the vehicle. Whilst keeping its design heritage and appearance the DuraLED^® range has been continuously upgraded to the latest material and electronic component technology.

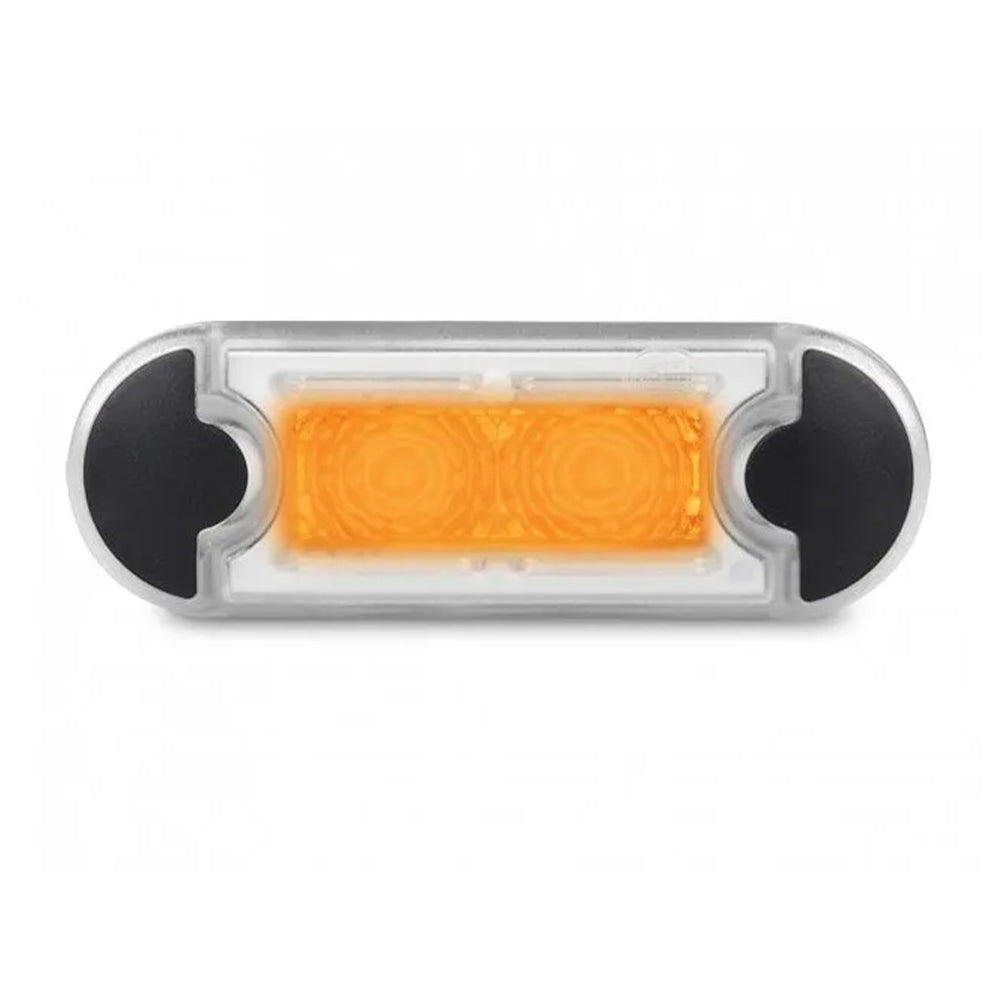

Amber flush mount front end outline LED lamp (FEOL) with optional stainless steel rim.

Featuring a low profile ultra durable Grilamid^® nylon lens for extreme impact, UV, chemical and stress resistance. Optic appears clear until illuminated.

Optics: Optic appears clear until illuminated.

Mounting: Flush mount. Suitable for horizontal or vertical mounting.

Voltage: Multivolt for optimum brightness in 12 and 24 volt systems.

Power Consumption: <0.5W

Protection:
Reverse polarity protection.
IP 6K7 (Protection against dust and temporary water immersion)
IP 6K9K (Protection against dust and high-pressure/steam jet cleaning)

Cable Length: Pre-wired with 0.5m of sheathed multi-core cable. Bulk pack pre-wired with 2.5m of sheathed multi-core cable.

Spare Parts:
9.2310.09-BULK Black screw caps (Pack of 4)
95968500 Stainless steel rim - Polished.

Lens Material: Grilamid^®

Compliance: ADR 49/00

*Warranty: DuraLED^® Lifetime Warranty. All HELLA DuraLED^® products carry a Lifetime Warranty. Note: Lifetime means the economic life of the vehicle these products were first installed on.
